ATACAMA 6300

Atacama 6300 4x4 Camper

Luxury 2 axle off road camper

The most important features of the Atacama 6300: All-terrain, functional, powerful and creative. This new off-road motorhome belongs to the most popular Actionmobil series Atacama.

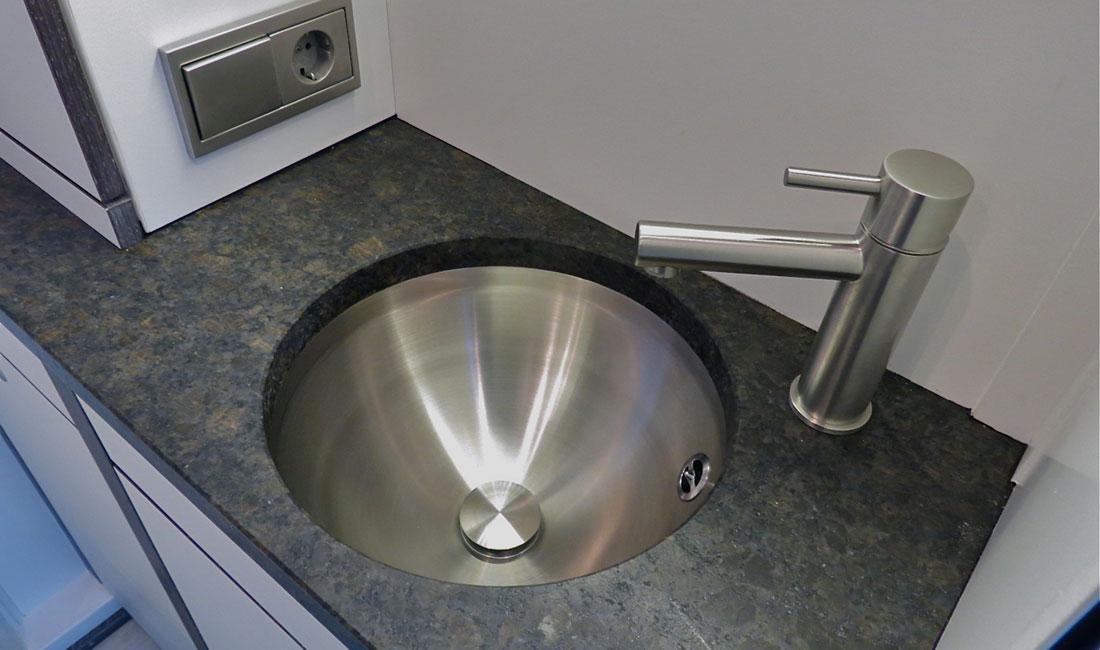

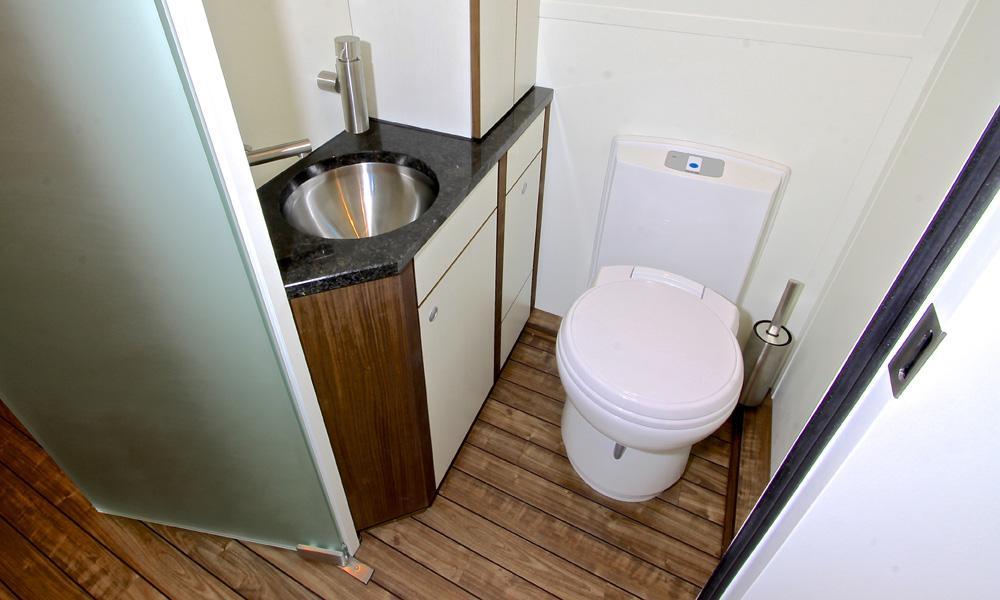

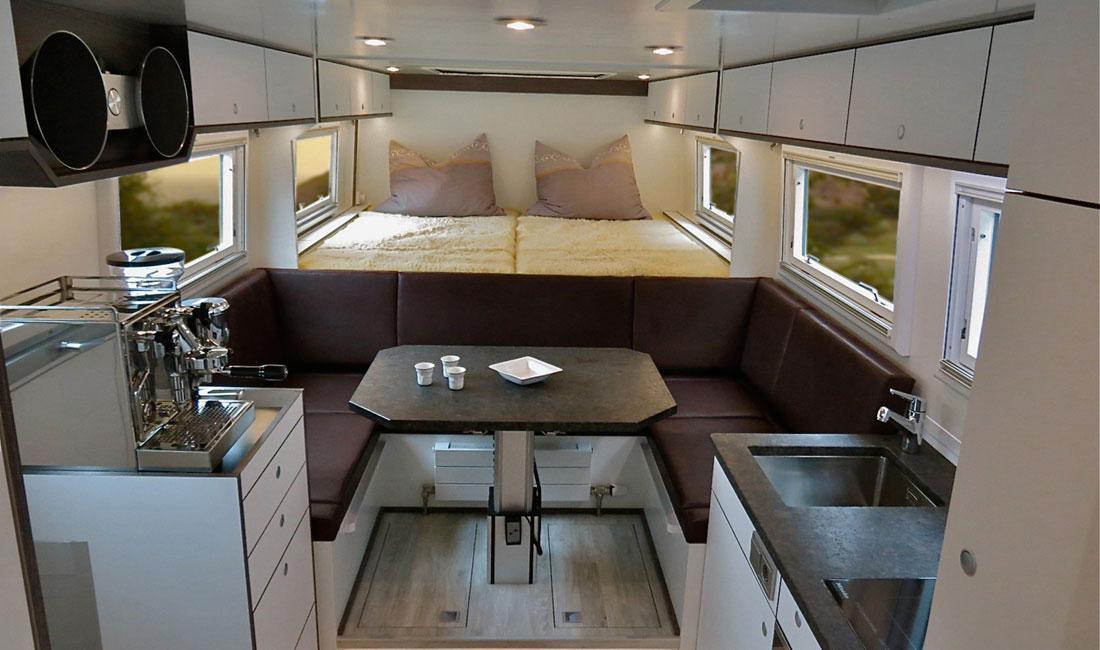

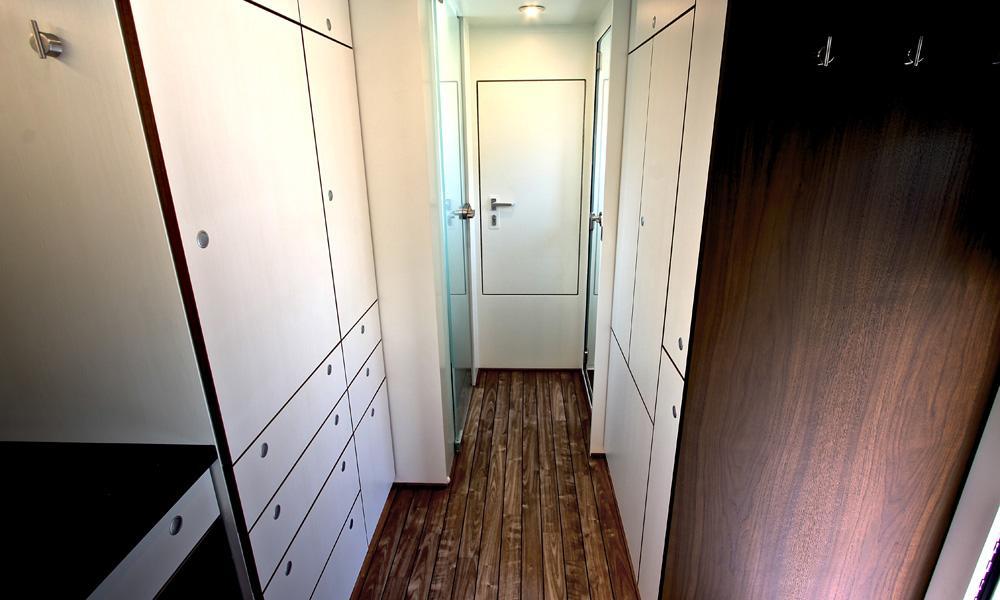

What is particularly remarkable is the sanitary area in the front part of the cabin. A sophisticated door system makes it possible to integrate the passage to the driver’s cab as a change room, if needed. Another feature that is highly popular is the U-shaped sofa in front of the permanent double bed. Below the bed there is a dust protected motorbike garage.

Technical specifications: Atacama 6300

Total length 8.800 mm
Body length 6.300 mm
Width 2.470 mm
Height (depends on demanded interior clearance) 3.850 mm
Weight  ready-to-go 14 tons
Payload 5 tons
Performance 540 HP
Fuel 1 x 600 litres
Emission class with AdBlue shut off system (international suitability) 5
Off road camper Atacama 6300



Powerful construction

Creative manufacturing



Water supply

Water / Tanks

  • Fresh water:  700 litres (1 x 500 litres, 1 x 200 litres)
  • Waste water: 170 litres

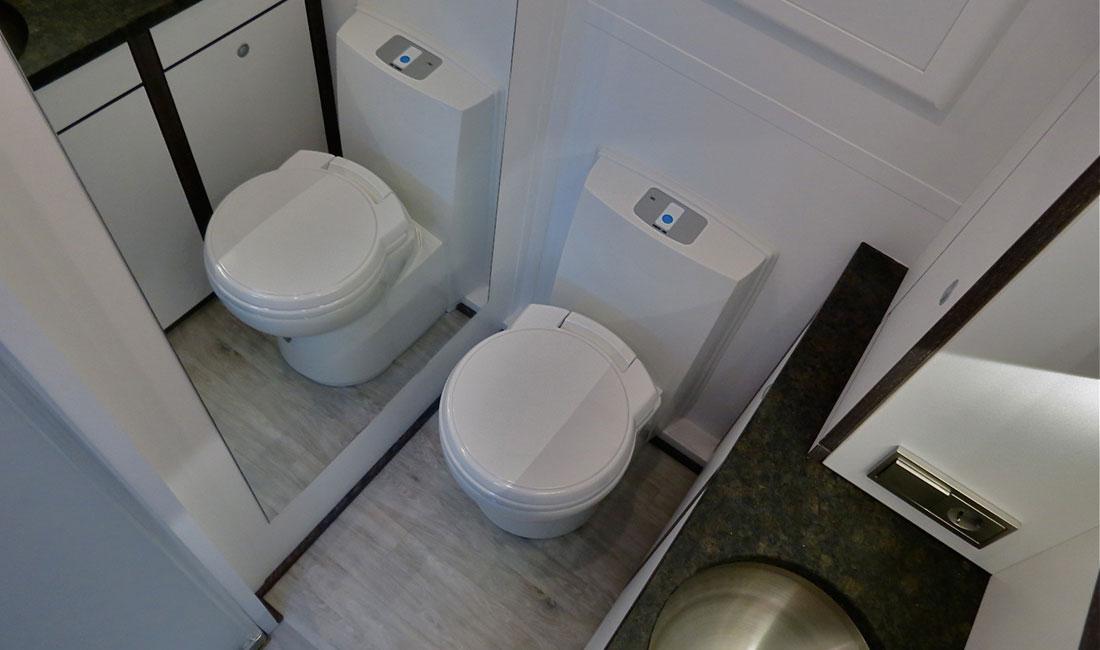

  • Toilet tank:  Cassette with 17 litres plus 2 additional cassettes

Battery & Solar

Battery system & Solar system

  • Type of battery: AGM
  • Capacity: 4 x 270 Ah = 540Ah @ 24V
  • Solar power: 960 Watt
  • Inverter: 5.000 Watt cont.
  • Charger: 120A/230V + 25A/90-260V

Air condition

Air condition & heating system

  • Heating system: waterheating system with floor heating unit. ACTION MOBIL ARCTICKIT consisting of: heated fuel tanks, heated fuel hoses, heated batteries, heated engine block, additional fuel tank inside body
  • Air condition: Power 2400 W

Kitchen

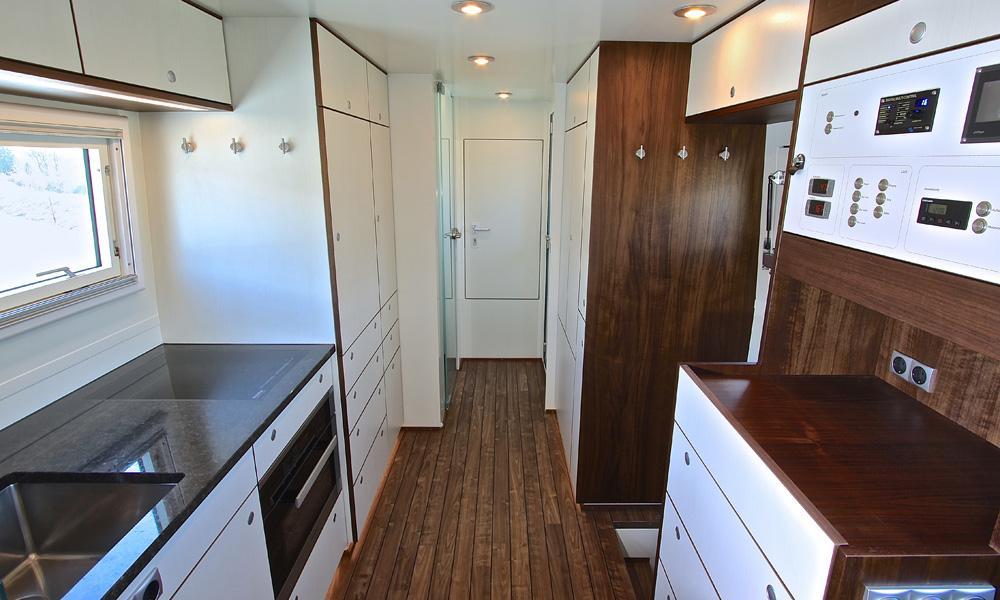

Kitchen equipment

  • Fridge: customized by ACTION MOBIL with extreme insulation 1 x 175 or 2 x 175 litres
  • Freezer: customized by ACTION MOBIL with extreme insulation 1 x 150 litres
  • Further equipment: washer-dryer MIELE
  • Induction cooker: MIELE 4 plates
  • Steamer: MIELE plus microwave and power heating system

More

Further equipment

  • Table: American nut

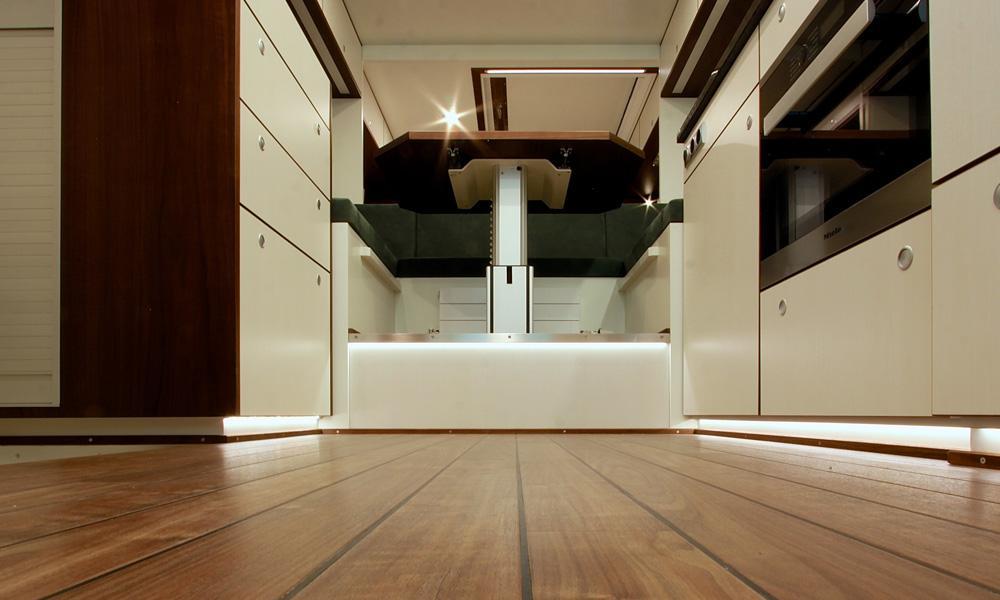

  • Floor: Nut

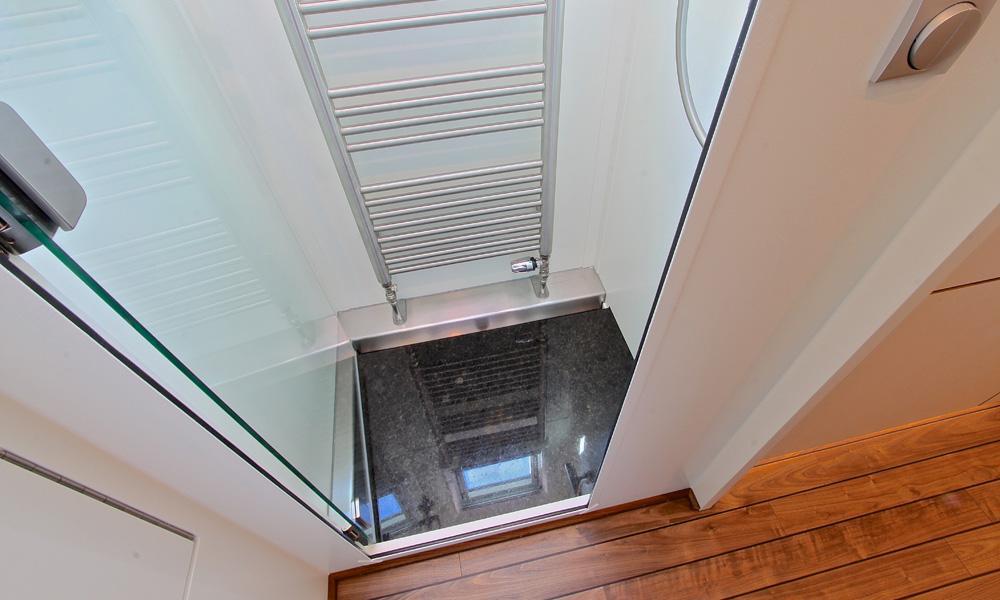

  • Shower floor, kitchen table: Granite
  • BOSE WAVE IV Soundsystem with Bluetooth
  • Tracking system: worldwide via satelite
  • CTIS
  • Windows customized by ACTION MOBIL
  • Lights: LED, dimmable colour change, indirect lieght in floor area

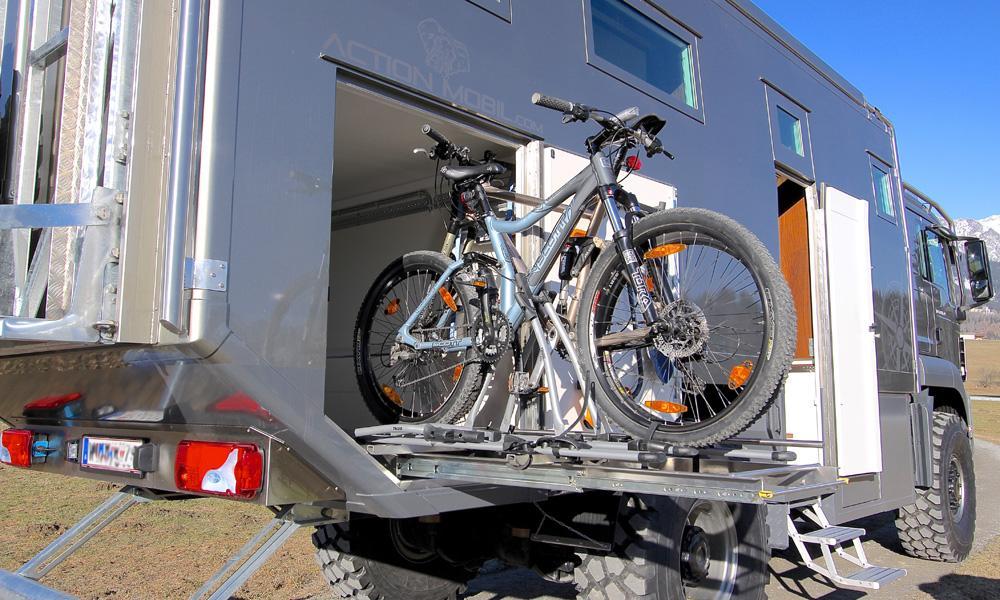

  • Hydraulic motor bike lift: Suitable for 1 motorbike, spare wheel and 4 sand sheets



Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background

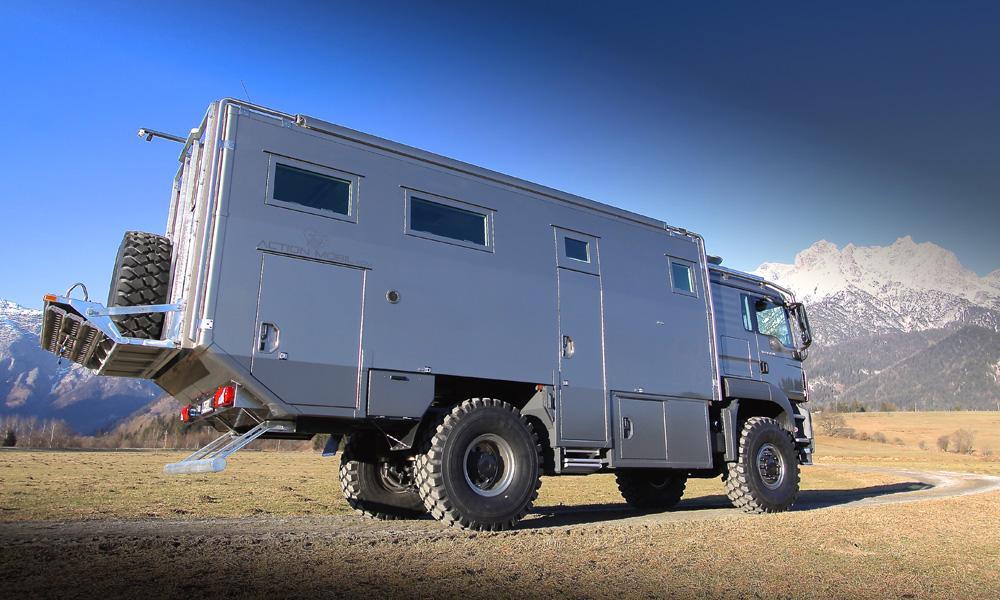

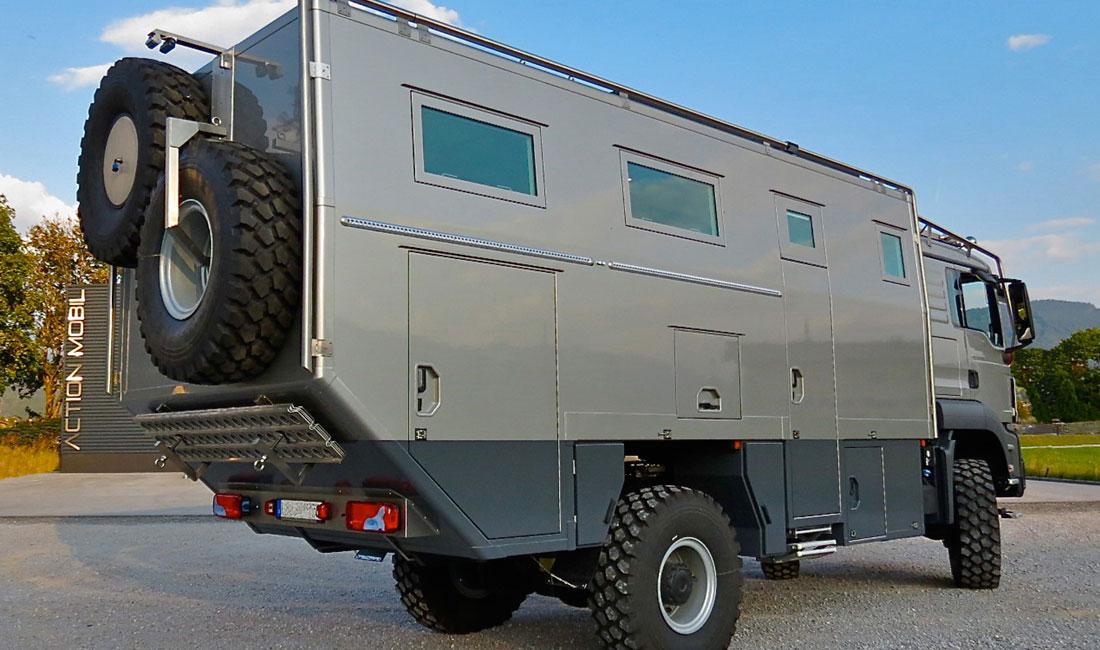

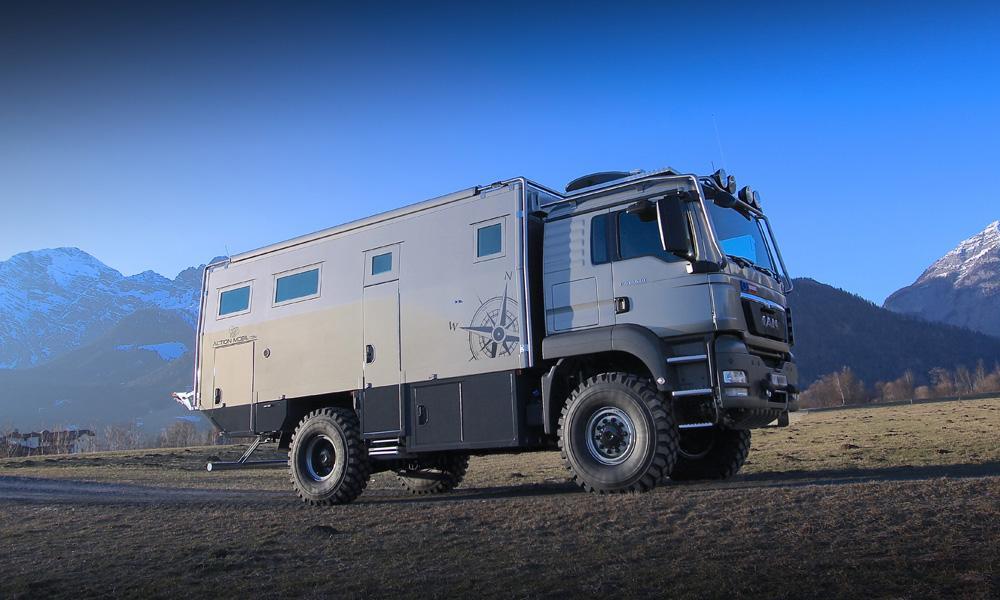

Atacama 6300 Gallery

Another model of our Atacama 6300 off road camper series.
