Temet 5500

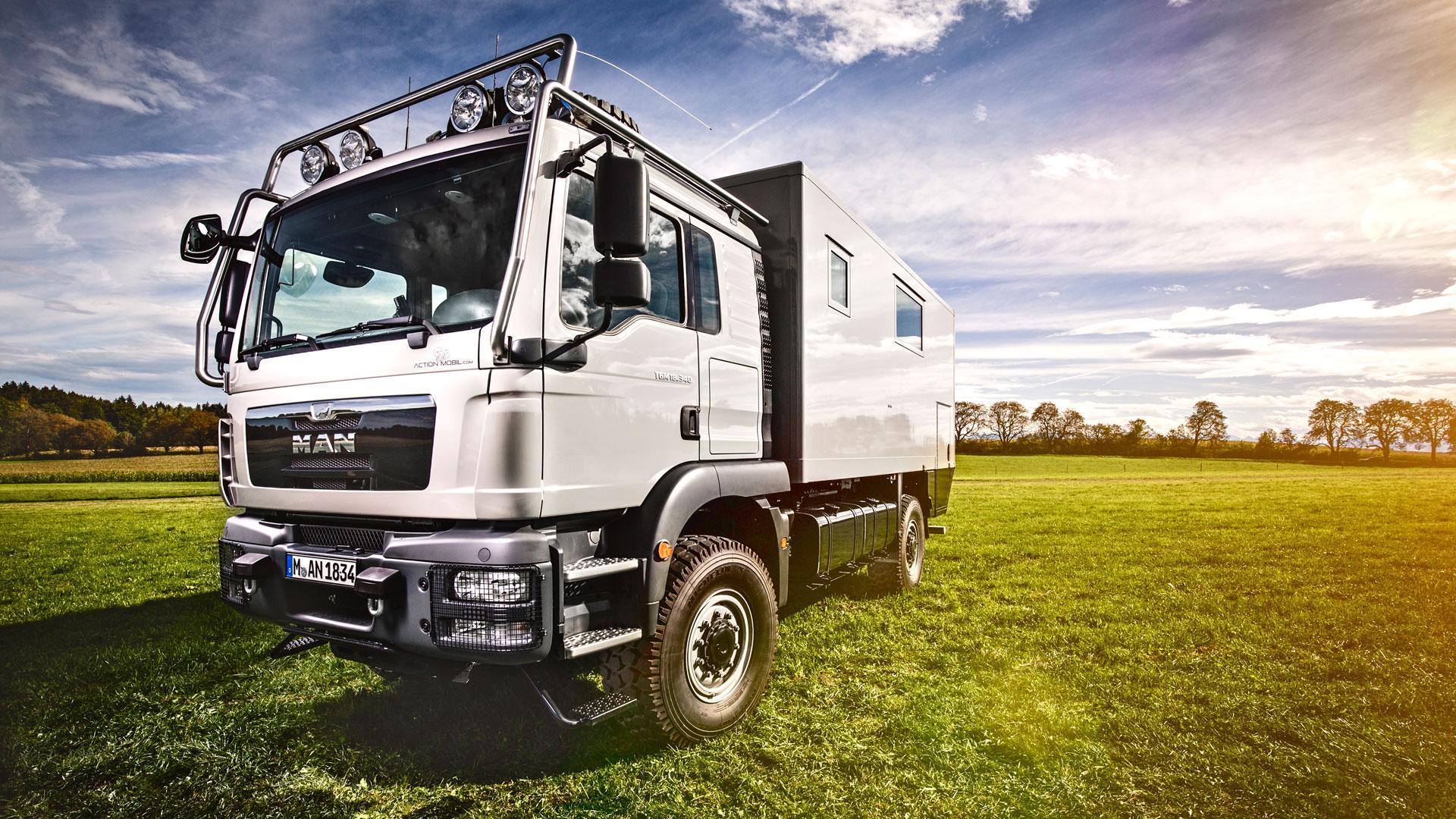

TEMET 5500 off road motor home

A top class off road camper

The most important features of the Temet 5500: All-terrain, compact, well-thought-out. The model series “TEMET” is ideal for providing cabins of different lengths, always starting out from the same basic layout. The sanitary facilities are situated in the front part of the cabin. One of the best off road caravans!

Technical specifications: TEMET 5500

Total length 8.000 mm
Body length 5.500 mm
Width 2.470 mm
Height (depends on demanded interior clearance) 3.720 mm
Weight  ready-to-go 13 tons
Payload 5 tons
Performance 350 HP
Fuel 2 x 400 litres
Emission class (convertible to EURO 3 within 60 minutes) EURO 5
Off road caravans Temet 5500



Technological perfection

Advanced Design



Water supply

Water / Tanks

  • Fresh water: 400 litres
  • Waste water: 170 litres
  • Toilet tank: 90 litres

Battery & Solar

Battery system & Solar system

  • Type of battery: AGM
  • Capacity: 6 x 270 Ah = 810Ah @ 24V
  • Solar power: 960 Watt
  • Inverter: 5.000 Watt cont.
  • Charger: 120A/230V + 60A/90-260V

Air condition

Air condition & heating system

  • Heating system: waterheating system with floor heating unit. ACTION MOBIL ARCTICKIT consisting of: heated fuel tanks, heated fuel hoses, heated batteries, heated engine block, additional fuel tank inside body
  • Air condition: Power 2400 W

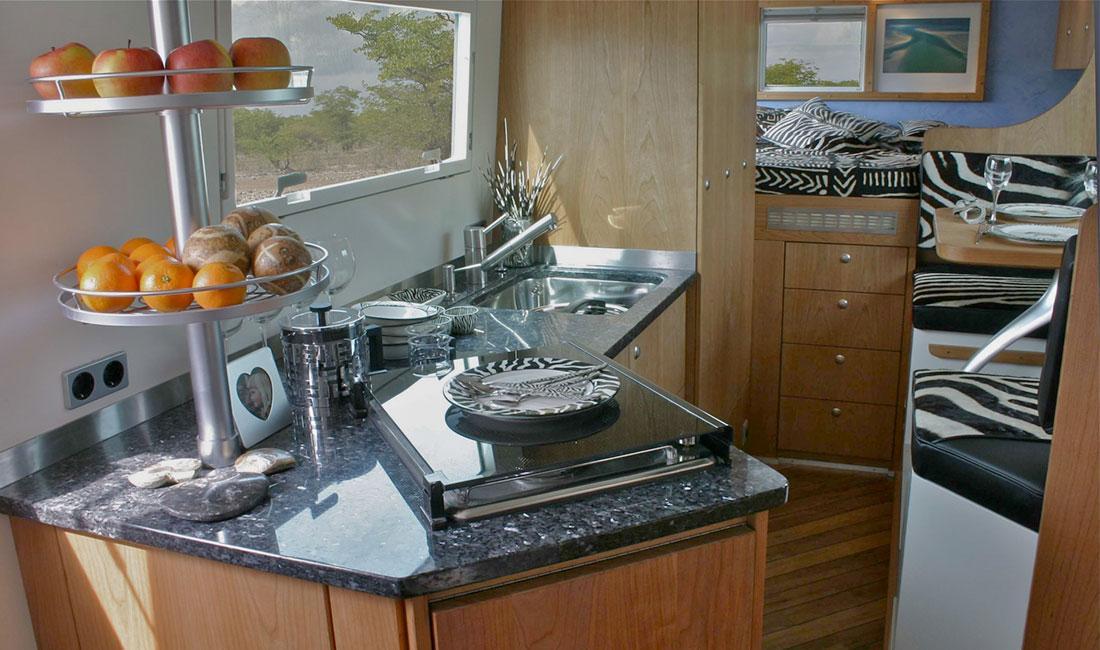

Kitchen

Kitchen equipment

  • Fridge: customized by ACTION MOBIL with extreme insulation 1 x 175 or 2 x 175 litres
  • Freezer: customized by ACTION MOBIL with extreme insulation 1 x 150 litres
  • Further equipment: washer-dryer MIELE
  • Induction cooker: MIELE 4 plates
  • Steamer: MIELE

More

Further equipment

  • Table: Solid oak
  • Floor: Teak
  • Shower floor: teak wood grating
  • BOSE WAVE III Soundsystem
  • Tracking system: worldwide via satelite
  • CTIS
  • Windows customized by ACTION MOBIL
  • Lights: LED, dimmable colour change, indirect lieght in floor area



The Haeusgens

Visit the website of the Haeusgens, who bought this ACTION MOBIL. The Haeusgens are on expedtition in Australia with their Temet 5500 at the moment.

The Haeusgens



Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background

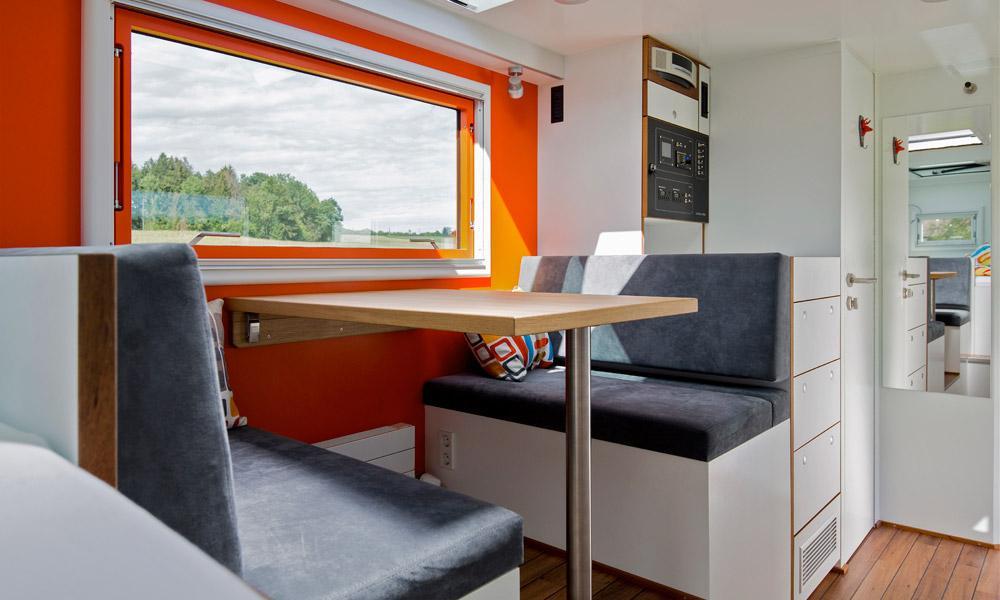

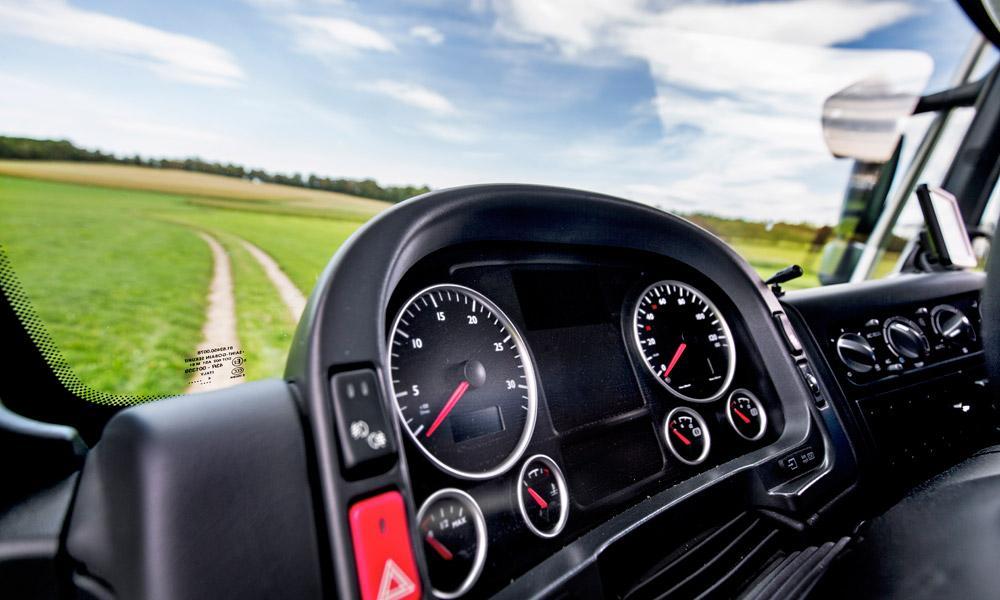

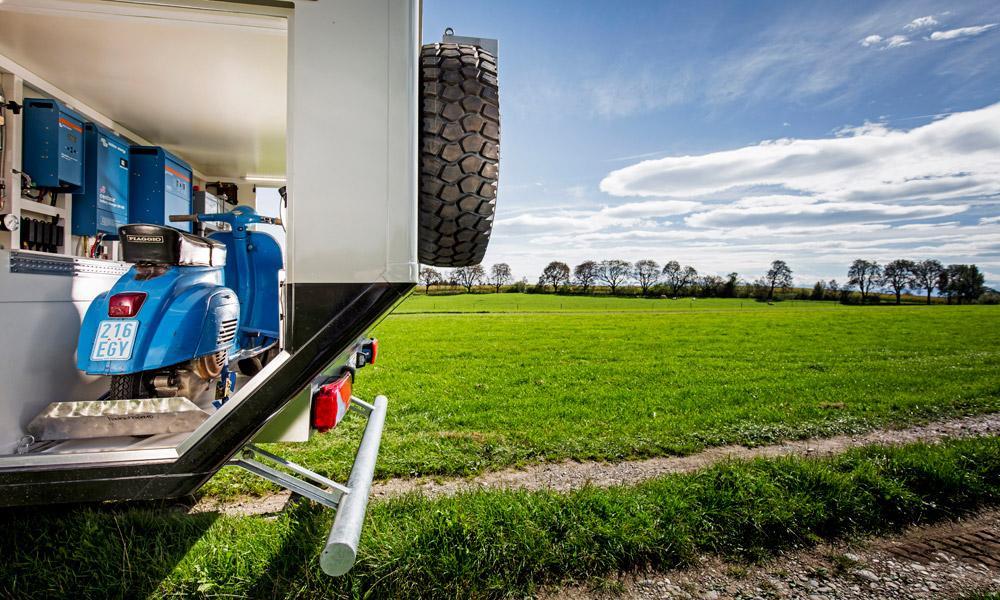

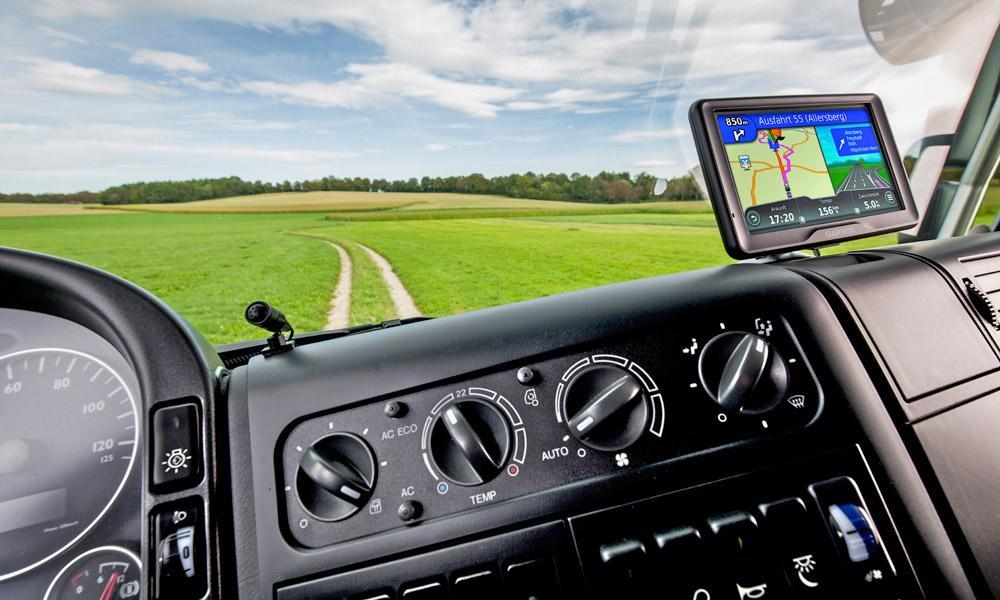

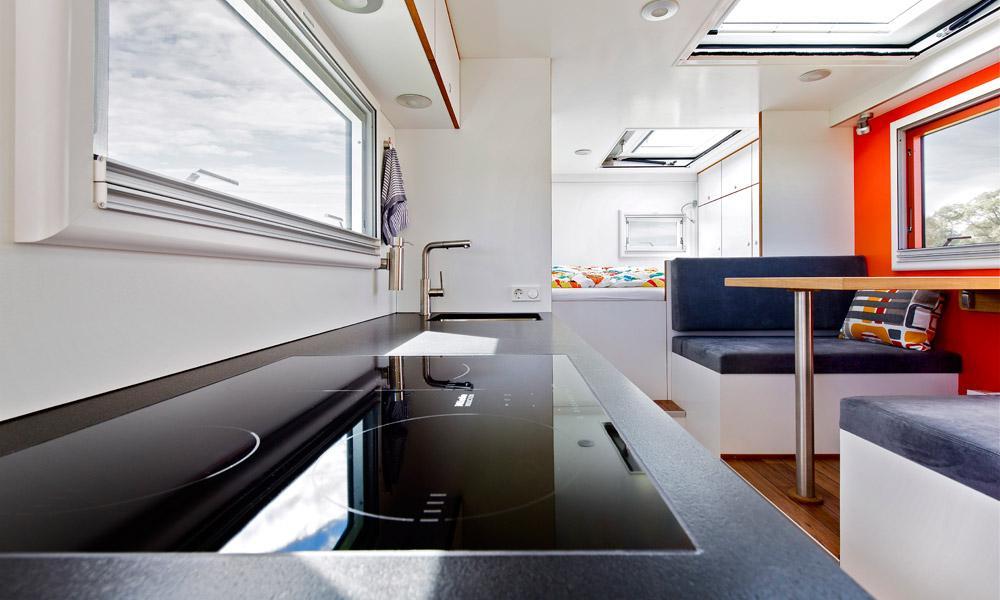

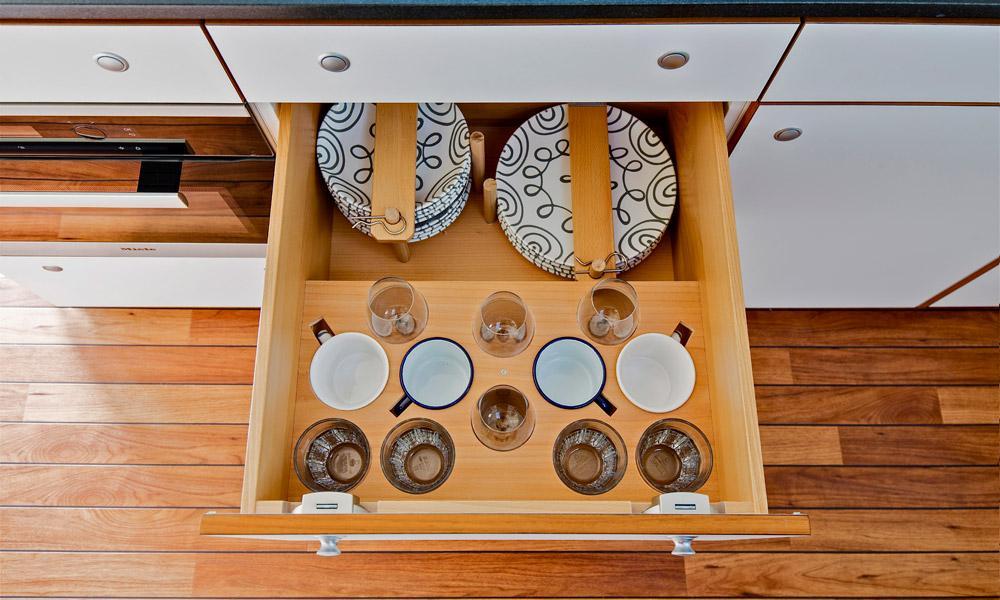

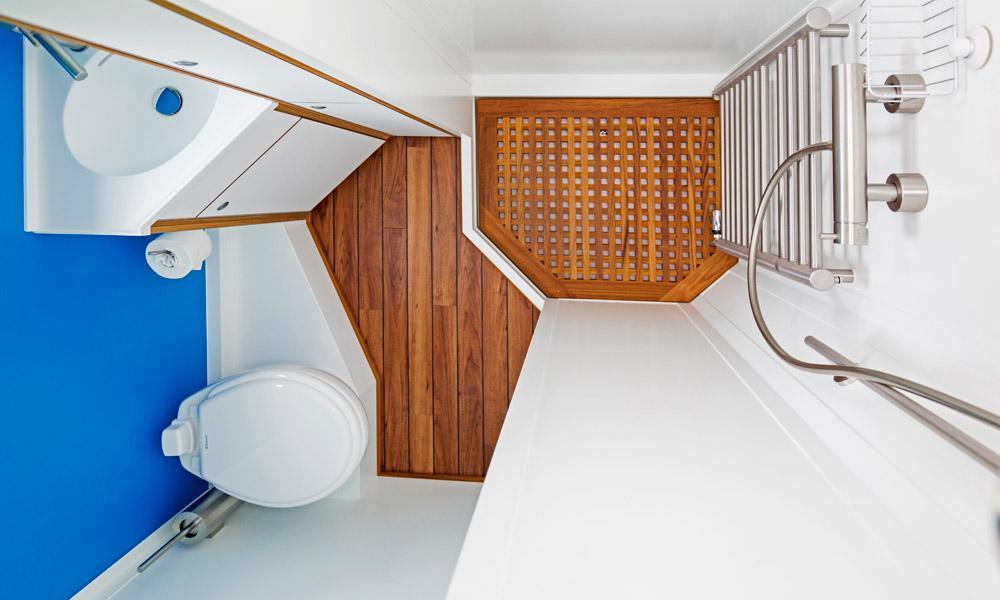

Temet 5500 Gallery

Another model of our Temet 5500 off road camper series.
